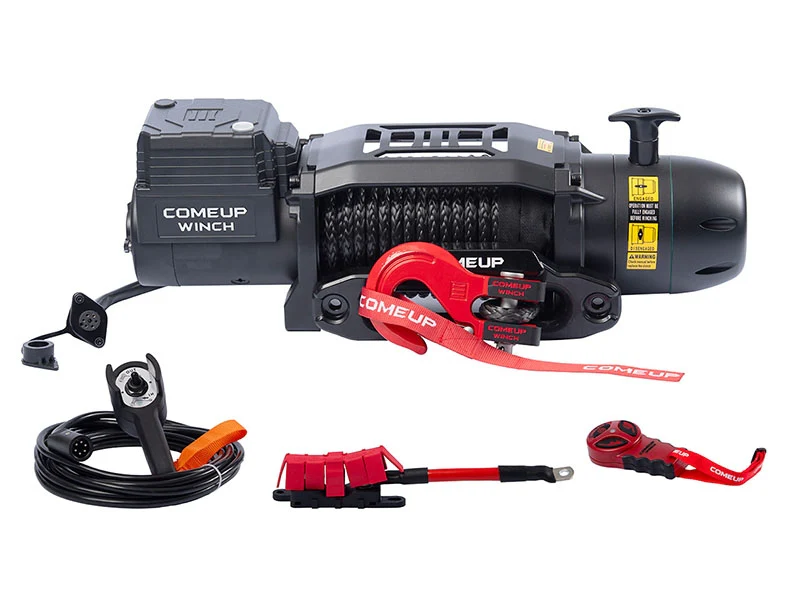

COMEUP Slim 9.5rsi Trail Edition
HomeStore

COMEUP Slim 9.5rsi Trail Edition

COMEUP Slim 9.5rsi Trail Edition

$1,002.51

Original: $2,864.32

-65%
COMEUP Slim 9.5rsi Trail Edition

$2,864.32

$1,002.51

The Story

COMEUP Slim 9.5rsi Trail Edition

4.3 Tonnes Severe Duty Winch

Trail Edition features includes the innovative BossHook M and a specialized winch fuse kit for superior functionality and protection. Slim 9.5rsi Trail Edition with the integrated design of the control box and motor, the overall size of the winch is significantly reduced, making low-profile installation much easier.
  • 12V DC severe duty winch rated at 9,500 lbspulling meets or exceeds your expectations.
  • The slim size plus strong of motor housing and gearbox support rack are suitable for equipped with any vehicles.
  • Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
  • New clutch lever kit is easy to engaged and disengaged. 16 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 22.5 degree increments.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
  • On/Off switch prevents the vehicle battery from draining when no use.
  • Both built-in digital two way wireless remote control and wired waterproof remote control.
  • A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
  • BossHook M made of strong SCM440 alloy steel, MBS14,500 KG.
  • The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
  • U.S. Germany, U.K. France, etcpatented mechanical cone brake holds the full load

Specifications:

  • Rated line pull: 4,309 kg / 9,500 lb single line
  • Line speed ( 1st layer): 14.8 mpm / 48.6 fpm 60 A at 12V no load
                                          2.2 mpm / 7.2 fpm 380 A at 12V full load
  • Motor: 3,730 w / 5.0 hp 12V series wound
  • Gear ratio: 3-stage planetary 159:1
  • Clutch (freespooling): Rotating ring gear
  • Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
  • Winch construction: Aluminum die cast housings with steel drum
  • Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
  • Control: Includes both built-in digital two-way wireless control and waterproof wired remote control with LED thermometric indicator and 5m (17') cord
  • Rope type: Synthetic rope
  • Rope size: 10 mm x 23.2 m (3/8” x 76’)
  • Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
  • Mounting : Foot forward or foot down mounting workable
  • Finish : Matte black powder-coated

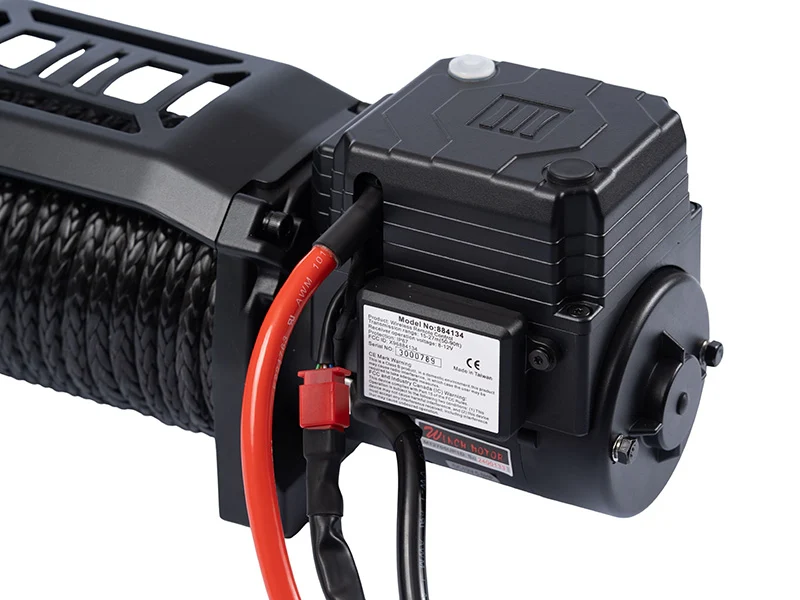

COMEUP Slim 9.5rsi Trail Edition - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

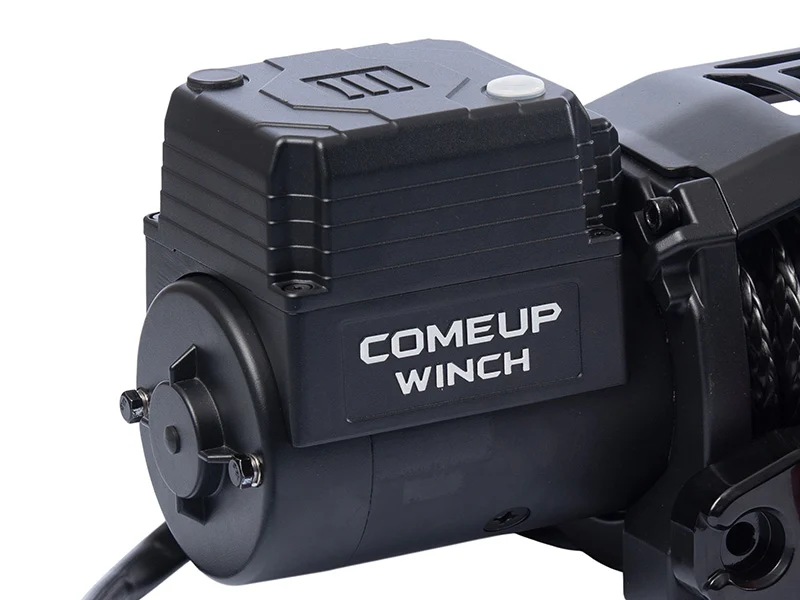

COMEUP Slim 9.5rsi Trail Edition - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

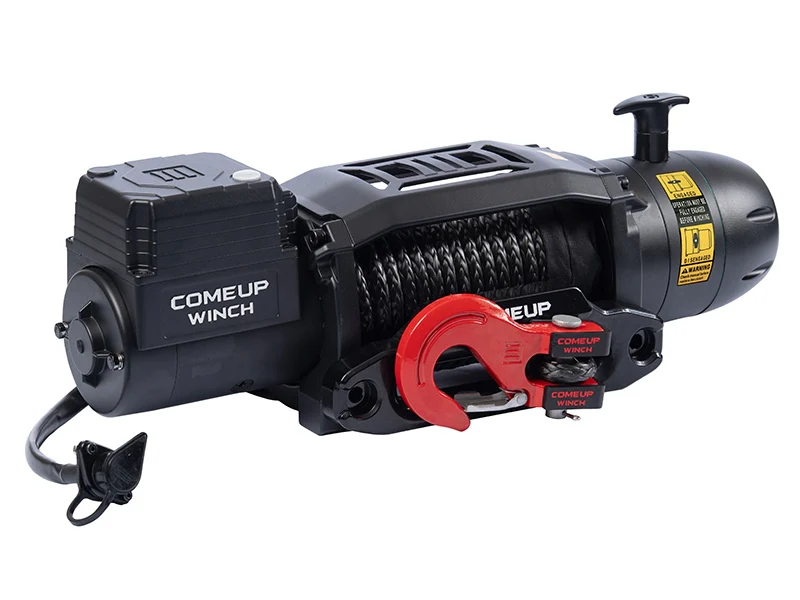

COMEUP Slim 9.5rsi Trail Edition - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

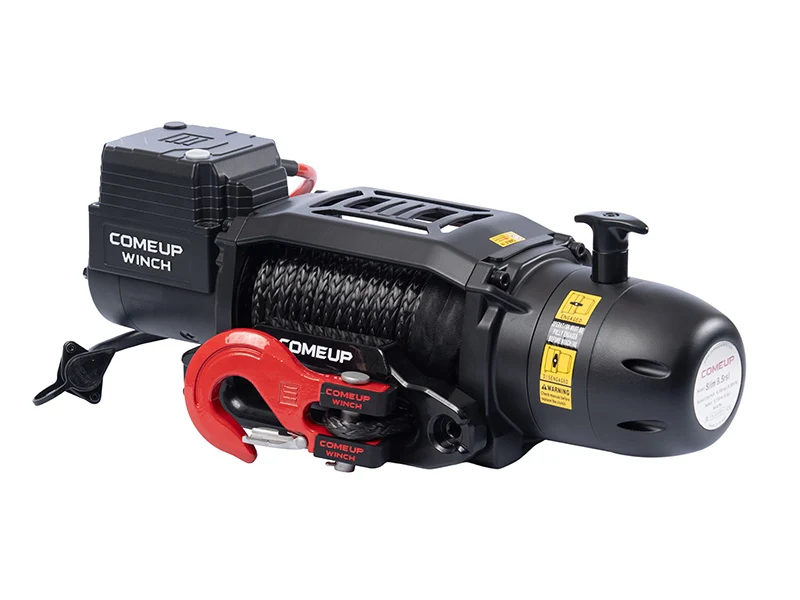

COMEUP Slim 9.5rsi Trail Edition - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

COMEUP Slim 9.5rsi Trail Edition

4.3 Tonnes Severe Duty Winch

Trail Edition features includes the innovative BossHook M and a specialized winch fuse kit for superior functionality and protection. Slim 9.5rsi Trail Edition with the integrated design of the control box and motor, the overall size of the winch is significantly reduced, making low-profile installation much easier.
  • 12V DC severe duty winch rated at 9,500 lbspulling meets or exceeds your expectations.
  • The slim size plus strong of motor housing and gearbox support rack are suitable for equipped with any vehicles.
  • Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
  • New clutch lever kit is easy to engaged and disengaged. 16 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 22.5 degree increments.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
  • On/Off switch prevents the vehicle battery from draining when no use.
  • Both built-in digital two way wireless remote control and wired waterproof remote control.
  • A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
  • BossHook M made of strong SCM440 alloy steel, MBS14,500 KG.
  • The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
  • U.S. Germany, U.K. France, etcpatented mechanical cone brake holds the full load

Specifications:

  • Rated line pull: 4,309 kg / 9,500 lb single line
  • Line speed ( 1st layer): 14.8 mpm / 48.6 fpm 60 A at 12V no load
                                          2.2 mpm / 7.2 fpm 380 A at 12V full load
  • Motor: 3,730 w / 5.0 hp 12V series wound
  • Gear ratio: 3-stage planetary 159:1
  • Clutch (freespooling): Rotating ring gear
  • Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
  • Winch construction: Aluminum die cast housings with steel drum
  • Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
  • Control: Includes both built-in digital two-way wireless control and waterproof wired remote control with LED thermometric indicator and 5m (17') cord
  • Rope type: Synthetic rope
  • Rope size: 10 mm x 23.2 m (3/8” x 76’)
  • Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
  • Mounting : Foot forward or foot down mounting workable
  • Finish : Matte black powder-coated
