COMEUP SEAL Slim 9.5rs, 12V Winch

COMEUP SEAL Slim 9.5rs, 12V Winch

4.3 Tonnes Severe Duty Winch

• 12V DC severe duty winch rated at 9,500 lbs pulling meets or exceeds your expectations.
• Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
• New clutch lever kit is easy to engage and disengaged. 16 equally positioned pin holes to ensure seamless clutch transmission and make it easily rotate by 22.5-degree increments.
• Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
• Cutout switch prevents the vehicle battery from draining when no use.
• Both built-in digital two way wireless remote control and wired water-proof remote control.
• 12 strand construction synthetic rope coated to improve abrasion resistance.
• Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
• U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load

Specifications:

• Rated line pull: 4,309 kg / 9,500 lb single line
• Line speed ( 1^st layer): 14.8 mpm / 48.6 fpm 60 A at 12V no load
                                        2.2 mpm / 7.2 fpm 380 A at 12V full load
• Motor: 3,730 w / 5.0 hp 12V series wound
• Gear ratio: 3-stage planetary 159:1
• Clutch (freespooling): Rotating ring gear
• Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
• Winch construction: Aluminum die cast housings with steel drum

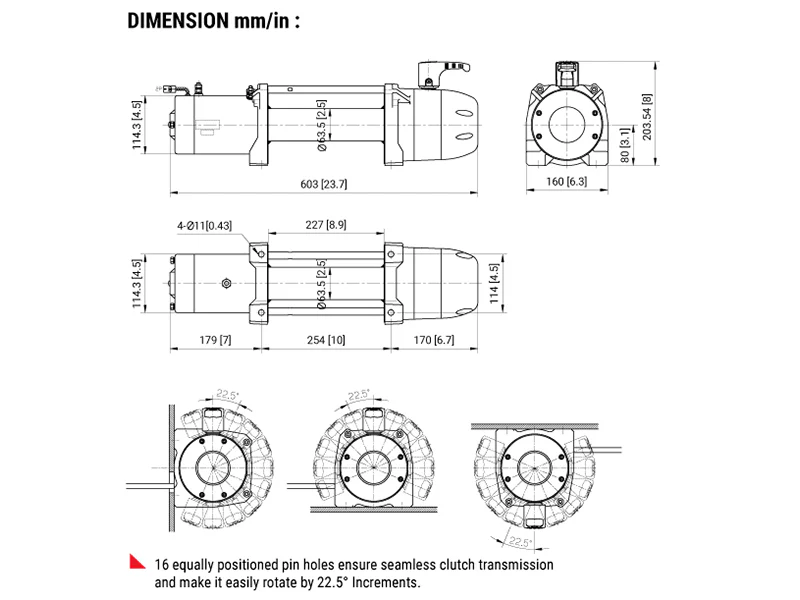

• Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
• Control: Both built-in digital signal two way wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord
• Rope type: Synthetic rope
• Rope size: 10 mm x 30.5 m (3/8” x 100’)
• Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
• Mounting : Foot forward or foot down mounting workable
• Finish : Matte black powder-coated
