Solo Motorsports 2021-2025 Ford Bronco Mid-Travel UCA and Double-Shear

The Ford Bronco Mid-Travel UCA and Double-Shear will put strength back into your vehicle. When lifting your Ford Bronco the Upper Control Arms are the limiting factor to the truck’s front suspension. Using these UCAs will allow for a tire size up to a 35″ tire.

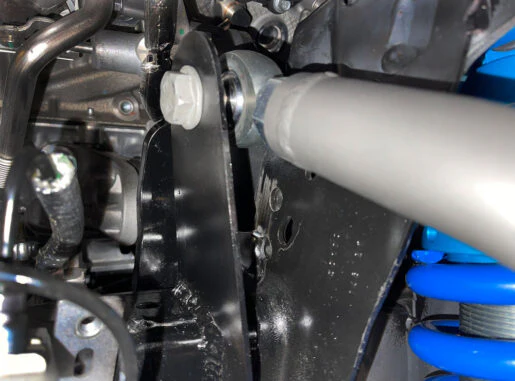

The UCA Double Shear Kit is included with this package. The UCA Double Shear is a weld-on product that reinforces the UCA Bolt on both sides of the coil bucket. Without double shearing the UCA bolt, over time the long bolt will start to bend from off-road use. To remove a bent UCA bolt will lead to time lost and frustration. The Double-Shear Kit will prevent that from happening.

Specs

• Front suspension travel: 1″ added
• Recommended tire size: 35″
• Fiberglass required: No
• Laser cut & CNC bent tubes MIG welded
• FK 7/8″ Heims at the frame pivot
• 4130 Chromoly 1″ Uni-ball cups
• 17-4 Stainless Steel Misalignment Spacers
• Grade 8 hardware
• UCA Bolt Double-Shear
• Made in the U.S.A

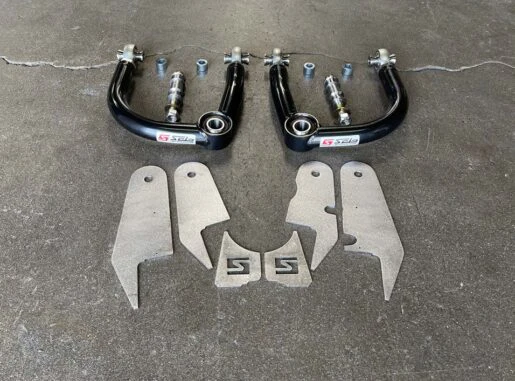

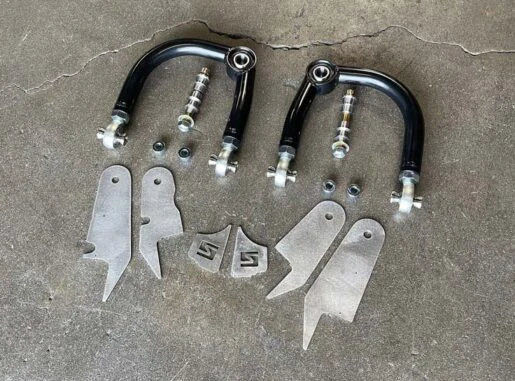

2021 Bronco UCA Kit Includes

• Solo Motorsports Tubular UCAs
• FK 7/8″ Heims
• FK 1″ Uni-Balls
• 17-4 Stainless Steel Misalignment Spacers
• Grade 8 hardware
• UCA Double-Shear W-I-Y Plates
• UCA Bolt Spacers
