Original: $1,299.00
-65%$1,299.00
$454.65The Story
Planar 4B Petrol Air Heater Autoterm
- Operates on petrol (gasoline) and 12V DC independently from the engine.
- Consumes 0.53 litre per hour of fuel running on maximum power.
- Generates 13,600 BTU/h with a strong airflow.
- Fully automated temperature control with various controllers.
- The Air heater is equipped with a self-diagnostic system.
- A Brushless electrical motor provides a low noise level.
- Reliable operation at temperatures as low as -45°C/-49°F.
- Compact design and “plug-and-play” installation.
Petrol Air Heater Autoterm Air 4B comes with an analog or digital programmable controller, basic installation kit, and Operational Manual.
For heating up to 35 ft. power boats / 40 ft. sailboats, commercial trucks, buses, vans, and motorhomes. Please note if you plan to use the heater at high elevations this model has a recommended max altitude of 1000 m (3300 ft)

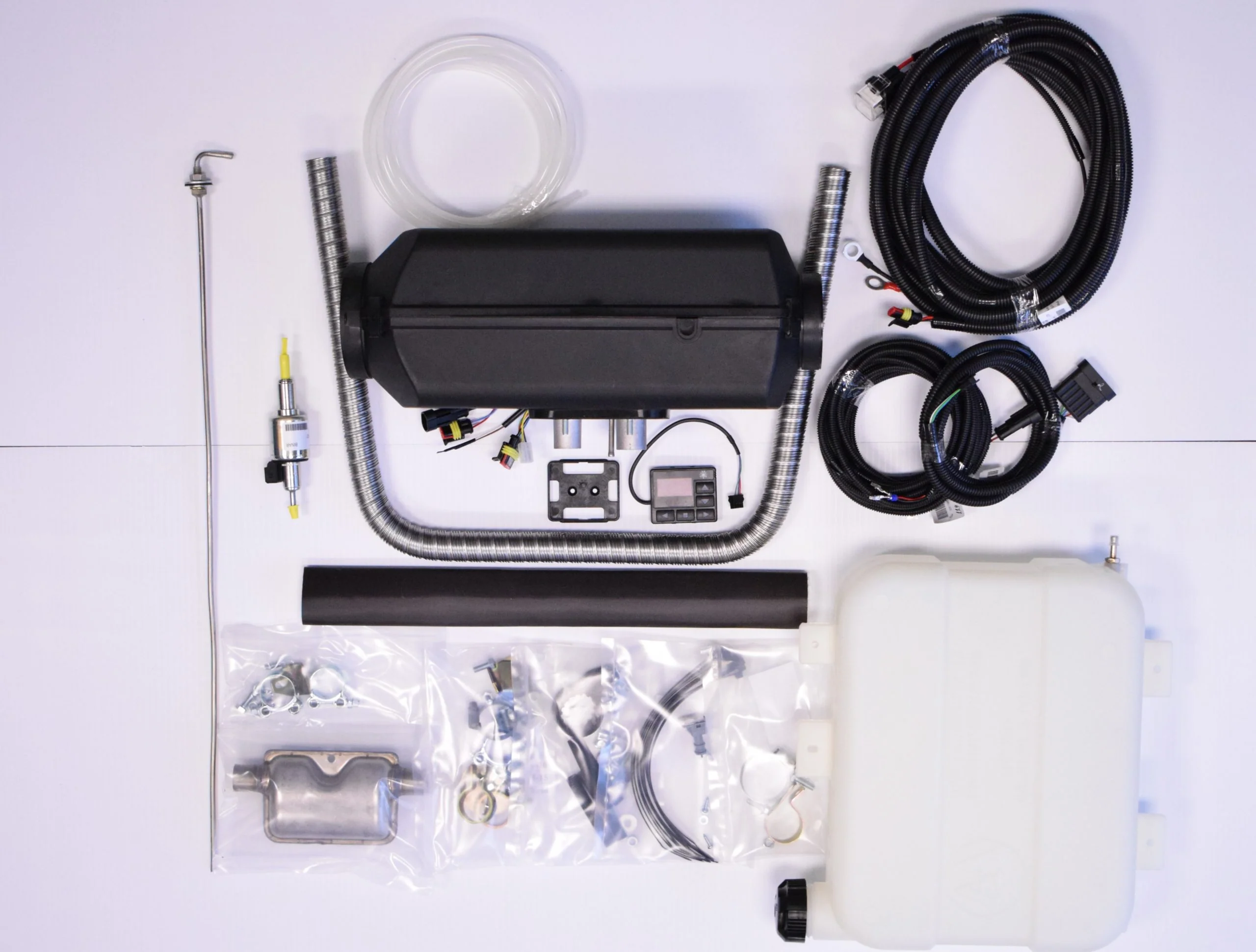

Kit Contents:
| Product | Contains |
|---|---|
| Petrol Air Heater Autoterm Air 4B | 1 |
| Inline Metering Fuel Pump | 1 |
| Fuel Line, m | 5.5 |
| Fuel Pick-UP Stand Pipe | 1 |
| Stainless Steel Flexible Exhaust, ft. | 3 |
| Exhaust Clamp | 1 |
| Combustion Air Intake Hose, ft. | 2 |
| Remote Wired Controller | 1 |
| Fuel Pump El. Cable, 6 m. | 1 |
| Power Cable with Fuses | 1 |
| Set of Fasteners & Brackets | 1 |
Technical Details:
| 12V | 24V | |
|---|---|---|
| Heat Output; kW (BTU): | 1.0-4.0 (3,200-13,600) | 1.0-4.0 (3,200-13,600) |
| Fuel Consumption; l/h (gal/h): | 0.12-0.49 (0.03-0.13) | 0.12-0.49 (0.03-0.13) |
| Nominal Supply Voltage; V: | 12 | 24 |
| Power Consumption; W (A): | 10-62.4 (0.8-5.2) | 10-57.6 (0.8-4.8) |
| Airflow Rate; m3/h: | 70-120 | 70-120 |
| Weight; kg: | 8.0 | 8.0 |
| L x D x H; mm: | 398 x 157 x 160 | 398 x 157 x 160 |
| Operating Modes: | Temperature/Power | Temperature/Power |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Planar 4B Petrol Air Heater Autoterm
- Operates on petrol (gasoline) and 12V DC independently from the engine.
- Consumes 0.53 litre per hour of fuel running on maximum power.
- Generates 13,600 BTU/h with a strong airflow.
- Fully automated temperature control with various controllers.
- The Air heater is equipped with a self-diagnostic system.
- A Brushless electrical motor provides a low noise level.
- Reliable operation at temperatures as low as -45°C/-49°F.
- Compact design and “plug-and-play” installation.
Petrol Air Heater Autoterm Air 4B comes with an analog or digital programmable controller, basic installation kit, and Operational Manual.
For heating up to 35 ft. power boats / 40 ft. sailboats, commercial trucks, buses, vans, and motorhomes. Please note if you plan to use the heater at high elevations this model has a recommended max altitude of 1000 m (3300 ft)
Kit Contents:
| Product | Contains |
|---|---|
| Petrol Air Heater Autoterm Air 4B | 1 |
| Inline Metering Fuel Pump | 1 |
| Fuel Line, m | 5.5 |
| Fuel Pick-UP Stand Pipe | 1 |
| Stainless Steel Flexible Exhaust, ft. | 3 |
| Exhaust Clamp | 1 |
| Combustion Air Intake Hose, ft. | 2 |
| Remote Wired Controller | 1 |
| Fuel Pump El. Cable, 6 m. | 1 |
| Power Cable with Fuses | 1 |
| Set of Fasteners & Brackets | 1 |
Technical Details:
| 12V | 24V | |
|---|---|---|
| Heat Output; kW (BTU): | 1.0-4.0 (3,200-13,600) | 1.0-4.0 (3,200-13,600) |
| Fuel Consumption; l/h (gal/h): | 0.12-0.49 (0.03-0.13) | 0.12-0.49 (0.03-0.13) |
| Nominal Supply Voltage; V: | 12 | 24 |
| Power Consumption; W (A): | 10-62.4 (0.8-5.2) | 10-57.6 (0.8-4.8) |
| Airflow Rate; m3/h: | 70-120 | 70-120 |
| Weight; kg: | 8.0 | 8.0 |
| L x D x H; mm: | 398 x 157 x 160 | 398 x 157 x 160 |
| Operating Modes: | Temperature/Power | Temperature/Power |
