Archive Garage Lower Axle Shock Tab Mount For Rod End Shocks—
$148.50
The Story
Archive Garage Lower Axle Shock Tab Mount For Rod End Shocks

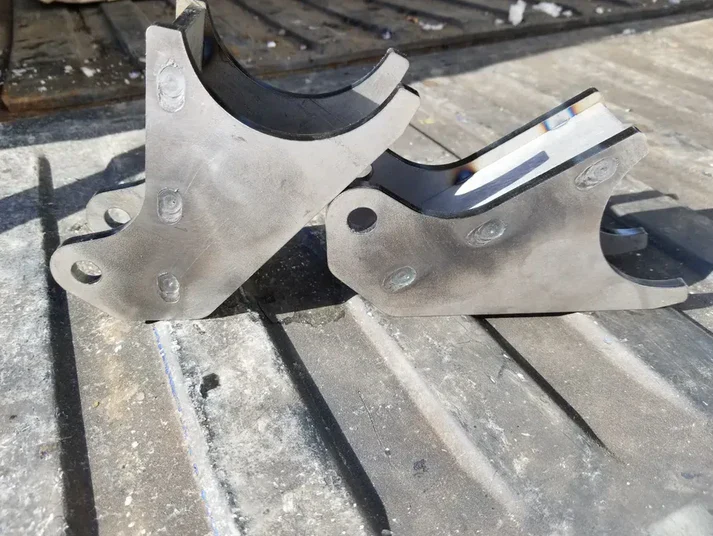

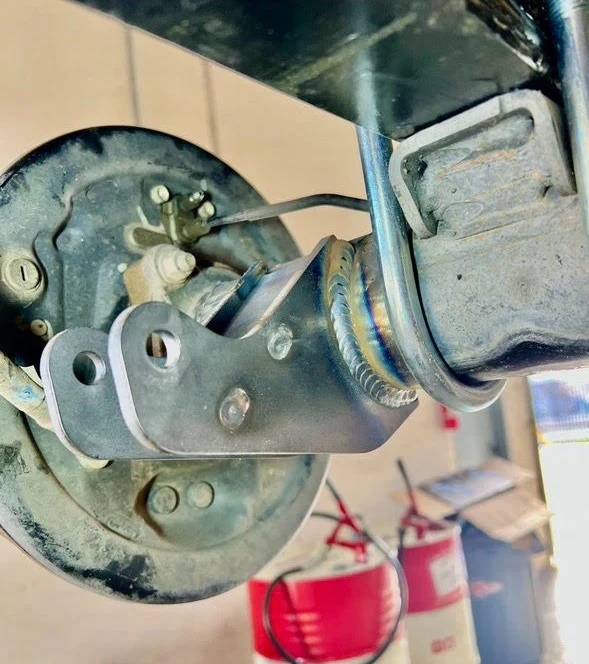

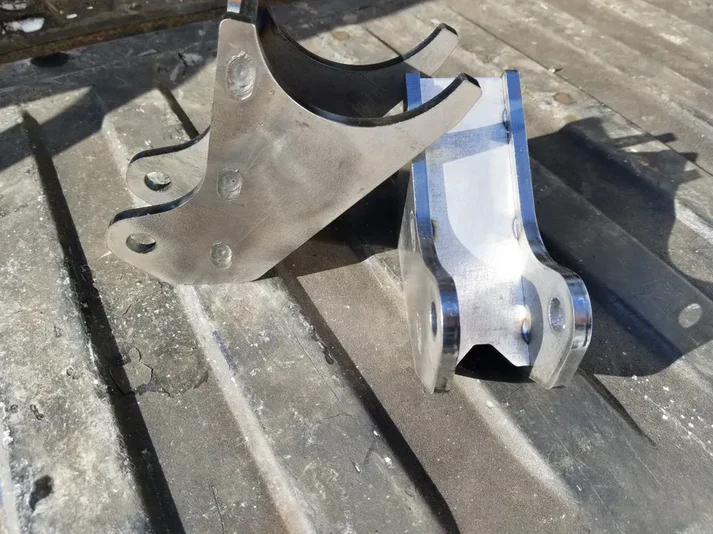

A pair of quality gusseted axle shock tab mounts that put the shock eye center 4" off axle OD. As such it can be mounted clocked up, horizontal or clocked down a tad over 45 degrees to help stuff those long travel Fox or Kings under the body or bed.
This specific tab comes in the Archive Garage 2G/3G Tacoma relocation kits
- Constructed from 1/4" HSLA (30% stronger) for extra toughness
- They come welded as shown, jig built, with tab gap just over 1.5" for easy fit
- Hole size is for 1/2" bolt
- Axle end is 3.25" diameter, but designed to fit any axle with 3.125" to 3.25" OD such as: 2G/3G Tacomas, 3G 4Runner, Ford Explorer 31 spline 8.8"
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Archive Garage Lower Axle Shock Tab Mount For Rod End Shocks
A pair of quality gusseted axle shock tab mounts that put the shock eye center 4" off axle OD. As such it can be mounted clocked up, horizontal or clocked down a tad over 45 degrees to help stuff those long travel Fox or Kings under the body or bed.
This specific tab comes in the Archive Garage 2G/3G Tacoma relocation kits
- Constructed from 1/4" HSLA (30% stronger) for extra toughness
- They come welded as shown, jig built, with tab gap just over 1.5" for easy fit
- Hole size is for 1/2" bolt
- Axle end is 3.25" diameter, but designed to fit any axle with 3.125" to 3.25" OD such as: 2G/3G Tacomas, 3G 4Runner, Ford Explorer 31 spline 8.8"
